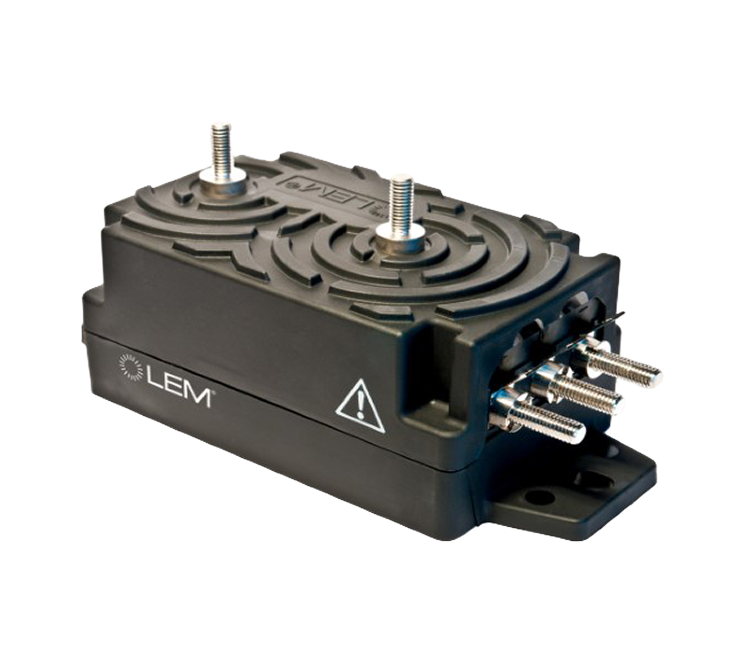

DVL-UI-Series

  • Voltage Range 50 – 1500V RMS
  • Technology Insulation Digital Technology (IDT)
  • Output 4–20mA (DVL-UI)
  • Supply ±15 ~ ±24V
  • Connections M5 threaded studs
  • Operating Temperature -40°C to +85°C

Compact IDT voltage sensors for DC voltage measurement in industrial and traction applications. 50 to 1500V.  DVL-UI variants offer 4–20mA output for unipolar positive voltage measurement up to 1500V. Both variants are compatible with LV100 and AV100 series footprints. Compliant with EN50155 (traction), EN50178 (industrial), and CE marked.

Used in substations, Industrial, Trackside and railway fixed installations and onboard traction systems.

Request Quote
