Cryogenic Low Noise Amplifiers

Select Model

LNF-LNC19_34WA

LNF-LNC19_34WA

  • RF Bandwidth 19 – 34 GHz
  • Noise Temperature 10.5 K
  • Noise Figure 0.15 dB
  • Gain 28 dB
  • DC Power Vds = 1.0V, Ids = 14mA
  • RF Connectors WR34 waveguide, UG-1530/U
  • 19 to 34 GHz coverage optimised for millimetre-wave applications.
  • Waveguide packaging using industry standard WR34 connectors for minimal insertion loss at these frequencies.
  • MMIC InP HEMT technology: excellent unit-to-unit consistency

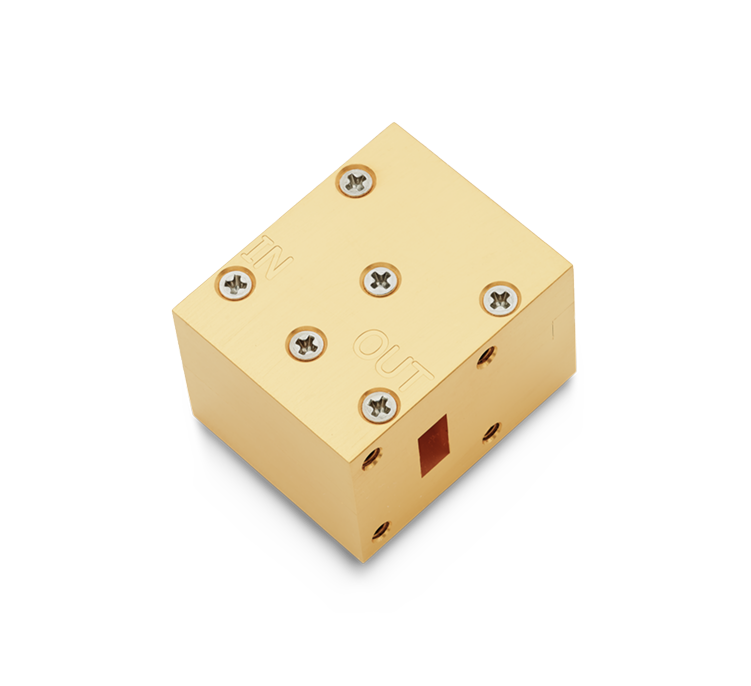

  • Gold-plated aluminium waveguide module (27.39 × 33.56 × 22.50mm). WR34 RF connectors, 9-pin Female Nano-D DC connector
  • Must be operated in a vacuum environment when below the dewpoint
  • Tested at 296 K and 5 K before delivery. Full test report included
Request Quote
