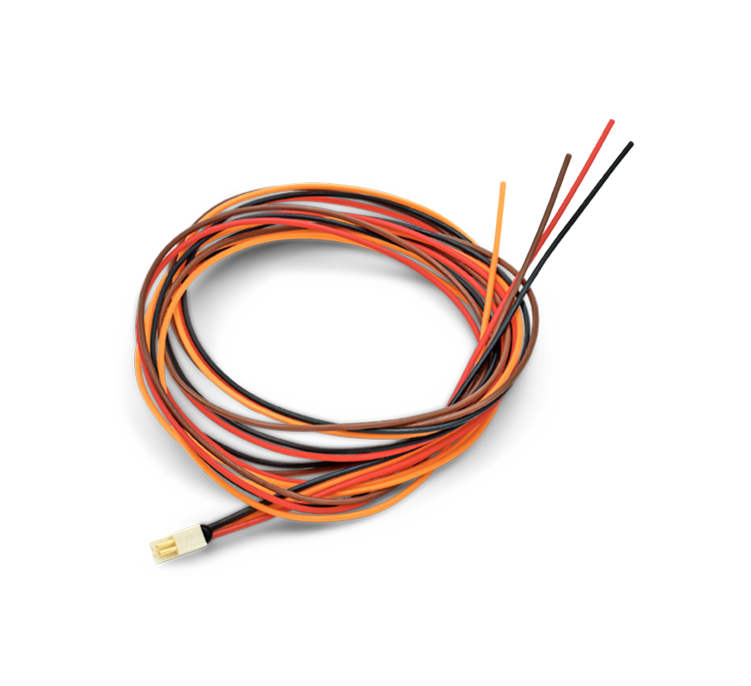

LNF-NANO4p

LNF-NANO4p

  • Function DC Bias Connector for LNF LNAs
  • Connector Type Nano 4-pin polarized
  • Cable 46cm, 32 AWG copper wire
  • Insulation Color-coded PTFE
  • Compatible With All LNF LNAs with Nano 4-pin polarized DC input (incl. LNF-LNR4_8F)
  • Mating connector for the Nano 4-pin polarized DC bias input on LNF room temperature LNAs.
  • Prewired with 46cm of 32 AWG copper wire with color-coded PTFE insulation. Ready for direct connection to the LNF-PS4 or a bench supply without additional fabrication
  • The room temperature counterpart to the LNF-NANO9M, same form and function for LNAs using the 4-pin polarized connector instead of the 9-pin Nano-D
Request Quote
