Cryogenic Low Noise Amplifiers

Select Model

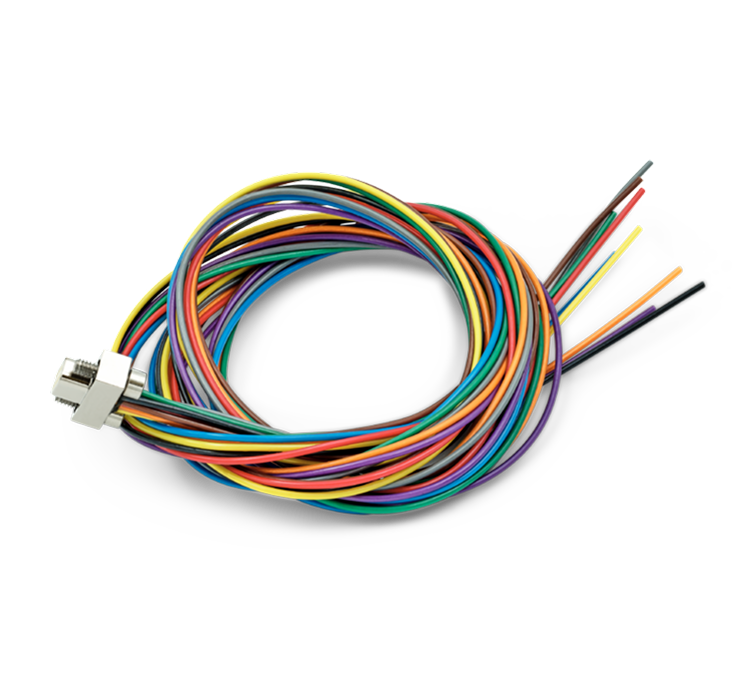

LNF-NANO9M

LNF-NANO9M

  • Function DC Bias Connector for LNF LNAs
  • Connector Type 9-pin Male Nano-D
  • Cable 46cm, 30 AWG copper wire
  • Compatible With All LNF LNAs with female 9-pin Nano-D DC input
  • Mating connector for the DC bias input on all LNF cryogenic and room temperature LNAs equipped with a female 9-pin Nano-D connector
  • Prewired with 46cm of 30 AWG copper wire, ready for integration with cryostat wiring or room-temperature test setups
  • Standard accessory for any LNF LNA system build, ensures correct connector mating without custom fabrication
Request Quote
