Cryogenic Low Noise Amplifiers

Select Model

LNF-PBA

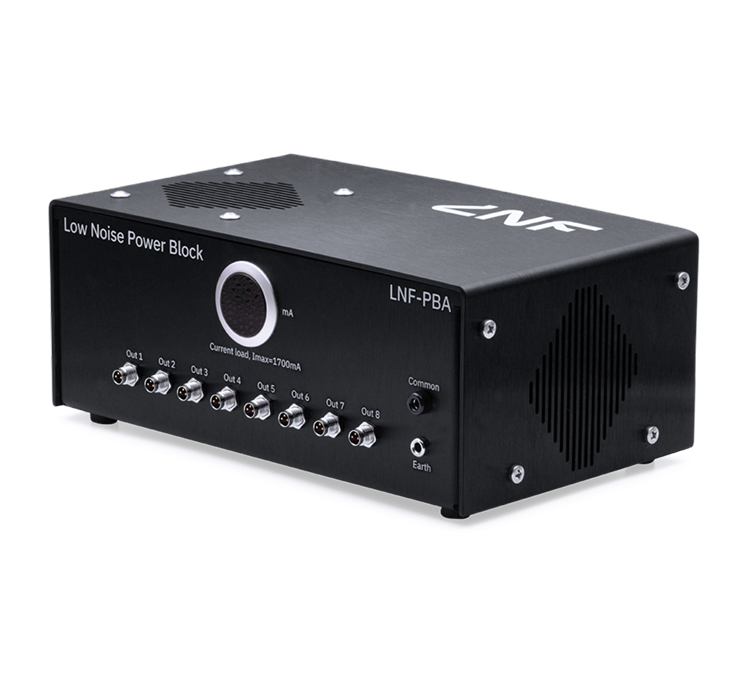

LNF-PBA

  • Function Low Noise Linear Power Block
  • Connector Type ±12V DC
  • Cable 8 (all parallel)
  • Mains Input 115V or 230V AC selectable
  • Compatible With LNF-PS3b, LNF-PS4, LNF-PS8, LNF-PS_EU2
  • ±12V low-noise linear power supply for LNF’s HEMT power supply line. Provides clean, regulated DC to up to 8 LNF power supplies simultaneously from a single mains-connected unit
  • 8 output connectors on the front panel, all in parallel, drives any combination of LNF-PS3b, LNF-PS4, and LNF-PS8 power supplies.
  • Panel ammeter shows +12V rail current draw, makes it immediately visible when approaching maximum load
  • Mains voltage selector on rear panel: 115V or 230V AC thereby usable in India at 230V without adapters
  • Floating/non-floating configuration via front-panel jumper. Recommended non-floating (jumper installed) during LNA connection and disconnection to prevent ground loops
Request Quote
